Audio Effect base class. More...

#include <AudioEffectWrapper.h>

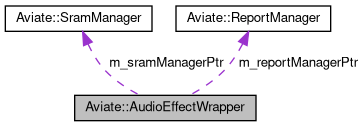

Collaboration diagram for Aviate::AudioEffectWrapper:

Public Member Functions
	AudioEffectWrapper ()
	Constructor.

virtual	~AudioEffectWrapper ()
	Destructor.

virtual const char *	getName ()=0
	Name of the effect. This is normally implemented by automatically by the EffectCreator App. More...

virtual void	setParam (int paramIndex, float paramValue)=0
	Updates the effect with specified parameter index and value. More...

virtual float	getUserParamValue (int paramIndex, float normalizedParamValue)=0
	Converts a normalized [0,1.0] value to the user value/range from Effect Creator. More...

void	sendValueReport (int controlIndex, float value)
	For MONITOR-only controls, you can report them to the host using sendValueReport(). More...

virtual void	inputLevelAdjust (float scaleFactor)
	(OPTIONAL) controls an input scaling value applied to effects. This must be implemented by the effect to be utilized. More...

virtual void	resetInputPeak ()
	Reset the peak recorded input level.

virtual uint16_t	getInputPeak ()
	Get the input peak level as a uint16_t. More...

virtual void	resetOutputPeak ()
	Reset the peak output level recorded.

virtual uint16_t	getOutputPeak ()
	Get the output peak level as a uint16_t. More...

virtual void	enable ()
	Enables audio processing. Note: when not enabled, CPU load is nearly zero.

virtual void	disable ()
	Disables audio process. When disabled, CPU load is nearly zero.

virtual void	bypass (bool byp)
	Bypass the effect. More...

virtual bool	isBypass ()
	Get if the effect is bypassed. More...

virtual void	toggleBypass ()
	Toggle the bypass effect.

virtual void	volume (float vol)
	Set the output volume. This affect both the wet and dry signals. More...

virtual void	volumeDb (float volDb)
	Set the output volume in negative dB. Unity is 0.0, half volume would be -6.0 dB, etc. More...

bool	isSramReady ()
	Checks to seeif the SRAM Manager is ready. More...

SramManager *	getSramManager ()
	Returns a pointer to the SramManager. More...

virtual void	setMidiOmni (bool isOmni)
	Sets whether MIDI OMNI channel is processig on or off. When on, all midi channels are used for matching CCs. More...

virtual void	mapMidiControl (int parameter, int midiCC, int midiChannel=0)=0
	Configure an effect parameter to be controlled by a MIDI CC number on a particular channel. More...

virtual void	processMidi (int channel, int midiCC, int value)=0
	process a MIDI Continous-Controller (CC) message More...

virtual const uint8_t *	getRblk ()=0
	Audio synchronization. More...

Protected Member Functions
void	m_updateInputPeak (const audio_block_t *block)
	Process an audio_block_t and update the m_inputMaxPeak protected variable. More...

void	m_updateInputPeak (const int16_t *audioData)
	Process an audio block as a raw int16_t array and update the m_inputMaxPeak protected variable. More...

void	m_updateOutputPeak (const audio_block_t *block)
	Process an audio_block_t and update the m_outputMaxPeak protected variable. More...

void	m_updateOutputPeak (const int16_t *audioData)
	Process an audio block as a raw int16_t array and update the m_outputMaxPeak protected variable. More...

void	m_updatePeak (const int16_t *audioData, uint16_t &peak)
	Internal function used to find the peak in a raw block of audio samples. Size must be AUDIO_SAMPLES_PER_BLOCK*sizeof(int16_t) More...

void	m_applyInputScaling (audio_block_t *block)
	Convenience function for EFX developer. If you wish to apply input scaling, this function will use the value stored in m_inputScaleFactor. More...

Protected Attributes
bool	m_isOmni = false
	when true, all MIDI channels are processed

bool	m_bypass = true
	when true, effect is bypassed and will transit input audio to output

bool	m_enable = false
	when true, effect is disabled with no processing

float	m_inputScaleFactor = 1.0f
	input scaling factor (if used by the effect)

uint16_t	m_inputMaxPeak = 0
	current input peak level

uint16_t	m_outputMaxPeak = 0
	current output peak level

float	m_volume = 1.0f
	master volume control as a scaling factor. Typically 0.0 to 1.0f.

SramManager *	m_sramManagerPtr = nullptr
	If the effect uses external SRAM this will be populated.

ReportManager *	m_reportManagerPtr = nullptr
	populated with the ReportManager instance

Static Protected Attributes
static constexpr int	MIDI_CHANNEL = 0
	MIDI channel array index. Internal use only.

static constexpr int	MIDI_CONTROL = 1
	MIDI control array index. Internal use only.

Detailed Description

Audio Effect base class.

Member Function Documentation

◆ bypass()

virtual void Aviate::AudioEffectWrapper::bypass ( bool byp )

virtual

Bypass the effect.

Parameters

byp	when true, bypass wil disable the effect, when false, effect is enabled. Note that audio still passes through when bypass is enabled.

◆ getInputPeak()

virtual uint16_t Aviate::AudioEffectWrapper::getInputPeak ( )

virtual

Get the input peak level as a uint16_t.

Returns: the input peak level recorded

◆ getName()

virtual const char* Aviate::AudioEffectWrapper::getName ( )

pure virtual

Name of the effect. This is normally implemented by automatically by the EffectCreator App.

Returns: a char* array to a C string with the name

◆ getOutputPeak()

virtual uint16_t Aviate::AudioEffectWrapper::getOutputPeak ( )

virtual

Get the output peak level as a uint16_t.

Returns: the output peak level recorded

◆ getRblk()

virtual const uint8_t* Aviate::AudioEffectWrapper::getRblk ( )

pure virtual

Audio synchronization.

Returns: pointer to audio interrupt lookup

◆ getSramManager()

SramManager* Aviate::AudioEffectWrapper::getSramManager ( )

Returns a pointer to the SramManager.

Returns: a pointer to the SramManager, if valid. Otherwise, nullptr.

◆ getUserParamValue()

virtual float Aviate::AudioEffectWrapper::getUserParamValue	(	int	paramIndex,
		float	normalizedParamValue
	)

pure virtual

Converts a normalized [0,1.0] value to the user value/range from Effect Creator.

Parameters

paramIndex	the index of the parameter for this effect
normalizedParamValue	the normalized [0,1.0] ranged value

Returns: the float value for the requested parameter

◆ inputLevelAdjust()

virtual void Aviate::AudioEffectWrapper::inputLevelAdjust ( float scaleFactor )

virtual

(OPTIONAL) controls an input scaling value applied to effects. This must be implemented by the effect to be utilized.

Parameters

scaleFactor a float value to be applied as a scaling fator

◆ isBypass()

virtual bool Aviate::AudioEffectWrapper::isBypass ( )

virtual

Get if the effect is bypassed.

Returns: true if bypassed, false if not bypassed

◆ isSramReady()

bool Aviate::AudioEffectWrapper::isSramReady ( )

Checks to seeif the SRAM Manager is ready.

Returns: true if SRAM is ready, otherwise false;

◆ m_applyInputScaling()

void Aviate::AudioEffectWrapper::m_applyInputScaling ( audio_block_t * block )

protected

Convenience function for EFX developer. If you wish to apply input scaling, this function will use the value stored in m_inputScaleFactor.

Parameters

block pointer to an audio_block_t structure

◆ m_updateInputPeak() [1/2]

void Aviate::AudioEffectWrapper::m_updateInputPeak ( const audio_block_t * block )

protected

Process an audio_block_t and update the m_inputMaxPeak protected variable.

Parameters

block pointer to an audio_block_t structure

◆ m_updateInputPeak() [2/2]

void Aviate::AudioEffectWrapper::m_updateInputPeak ( const int16_t * audioData )

protected

Process an audio block as a raw int16_t array and update the m_inputMaxPeak protected variable.

Parameters

audioData pointer to an array of int16_t. It's size must be AUDIO_SAMPLES_PER_BLOCK*sizeof(int16_t)

◆ m_updateOutputPeak() [1/2]

void Aviate::AudioEffectWrapper::m_updateOutputPeak ( const audio_block_t * block )

protected

Process an audio_block_t and update the m_outputMaxPeak protected variable.

Parameters

block pointer to an audio_block_t structure

◆ m_updateOutputPeak() [2/2]

void Aviate::AudioEffectWrapper::m_updateOutputPeak ( const int16_t * audioData )

protected

Process an audio block as a raw int16_t array and update the m_outputMaxPeak protected variable.

Parameters

audioData pointer to an array of int16_t. It's size must be AUDIO_SAMPLES_PER_BLOCK*sizeof(int16_t)

◆ m_updatePeak()

void Aviate::AudioEffectWrapper::m_updatePeak	(	const int16_t *	audioData,
		uint16_t &	peak
	)

protected

Internal function used to find the peak in a raw block of audio samples. Size must be AUDIO_SAMPLES_PER_BLOCK*sizeof(int16_t)

Parameters

audioData	pointer to an array of int16_t. It's size must be AUDIO_SAMPLES_PER_BLOCK*sizeof(int16_t)
peak	peak value will be written to this variable

◆ mapMidiControl()

virtual void Aviate::AudioEffectWrapper::mapMidiControl	(	int	parameter,
		int	midiCC,
		int	midiChannel = `0`
	)

pure virtual

Configure an effect parameter to be controlled by a MIDI CC number on a particular channel.

Parameters

parameter	one of the parameter names in the class enum
midiCC	the CC number from 0 to 127
midiChannel	the effect will only response to the CC on this channel when OMNI mode is off.

◆ processMidi()

virtual void Aviate::AudioEffectWrapper::processMidi	(	int	channel,
		int	midiCC,
		int	value
	)

pure virtual

process a MIDI Continous-Controller (CC) message

Parameters

channel	the MIDI channel from 0 to 15)
midiCC	the CC number from 0 to 127
value	the CC value from 0 to 127

◆ sendValueReport()

void Aviate::AudioEffectWrapper::sendValueReport	(	int	controlIndex,
		float	value
	)

For MONITOR-only controls, you can report them to the host using sendValueReport().

Parameters

controlIndex	this is the control enum value defined in your EFX public header
value	the control value to send to the host

◆ setMidiOmni()

virtual void Aviate::AudioEffectWrapper::setMidiOmni ( bool isOmni )

virtual

Sets whether MIDI OMNI channel is processig on or off. When on, all midi channels are used for matching CCs.

Parameters

isOmni when true, all channels are processed, when false, channel must match configured value.

◆ setParam()

virtual void Aviate::AudioEffectWrapper::setParam	(	int	paramIndex,
		float	paramValue
	)

pure virtual

Updates the effect with specified parameter index and value.

Parameters

paramIndex	the index of the parameter for this effect
paramValue	the new value for the effect

◆ volume()

virtual void Aviate::AudioEffectWrapper::volume ( float vol )

virtual

Set the output volume. This affect both the wet and dry signals.

The default is 1.0.

Parameters

vol	Sets the output volume between -1.0 and +1.0

◆ volumeDb()

virtual void Aviate::AudioEffectWrapper::volumeDb ( float volDb )

virtual

Set the output volume in negative dB. Unity is 0.0, half volume would be -6.0 dB, etc.

Parameters

volDb volume level in dB, must be -60.0 <= volDb <= 60.0

The documentation for this class was generated from the following file:

inc/AudioEffectWrapper.h
